उत्पत्ति के प्लेस: | चीन |
---|---|
ब्रांड नाम: | Runpaq |
प्रमाणन: | NONE |
मॉडल संख्या: | K33 |
न्यूनतम आदेश मात्रा: | 1000 टुकड़े |
पैकेजिंग विवरण: | दफ़्ती |
प्रसव के समय: | 15-21 दिन |
भुगतान शर्तें: | टी/टी, एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन |
आपूर्ति की क्षमता: | 200000 सेट/माह |
सामान्य वोल्टेज: | लिथियम बैटरी 2.5-5VDC | आवेदन: | खुला / बंद हीटिंग वाल्व |
---|---|---|---|
खाली रन करंट: | <40 एमए (23 सी) (मोटर #300) | पूर्ण लोडिंग पर वर्तमान: | लगभग 650 एमए |
मोटर: | DC2.5V #300 मोटर | टॉर्कः: | 2 एनएम (1600:1) |
खुलने / बंद होने का समय: | <10 एस (1600:1) | न्यूनन का अनुपात: | 2000: 1 (डीएन15 के लिए - 25 बॉल वाल्व); |
संरक्षण: | आईपी67 | आदर्श: | K33 |

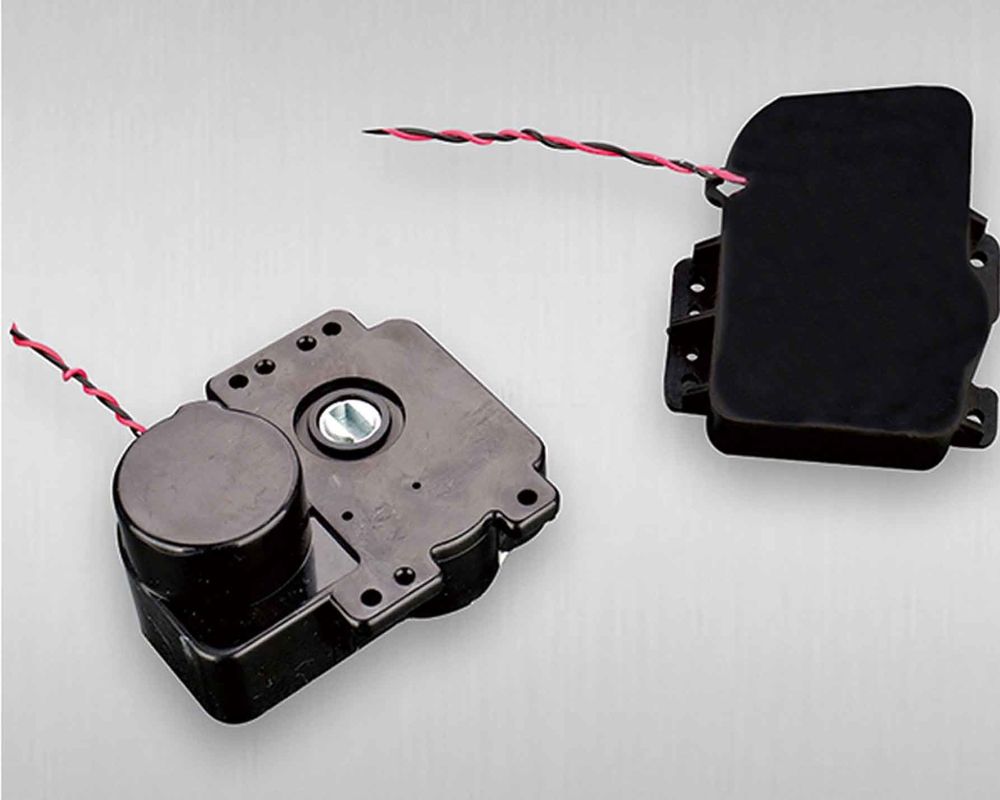

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.

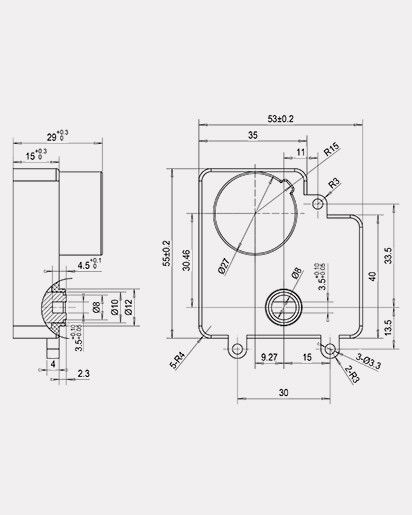

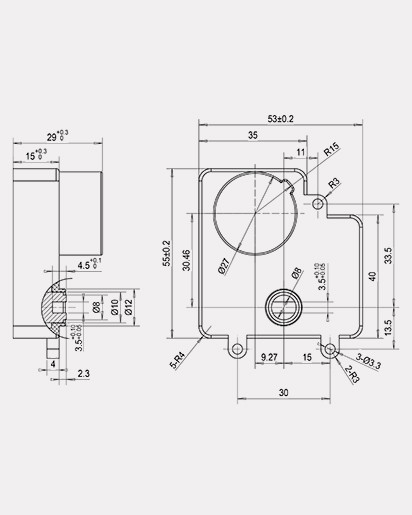

Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
